Massimo I5MZY present two variants of his 13 element Yagi antenna for 144 MHz.
The first is a 6 meter boom version and the second one a 7 meter boom variant.
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/13-element-yagi-i5zmy.jpg?resize=640%2C434)

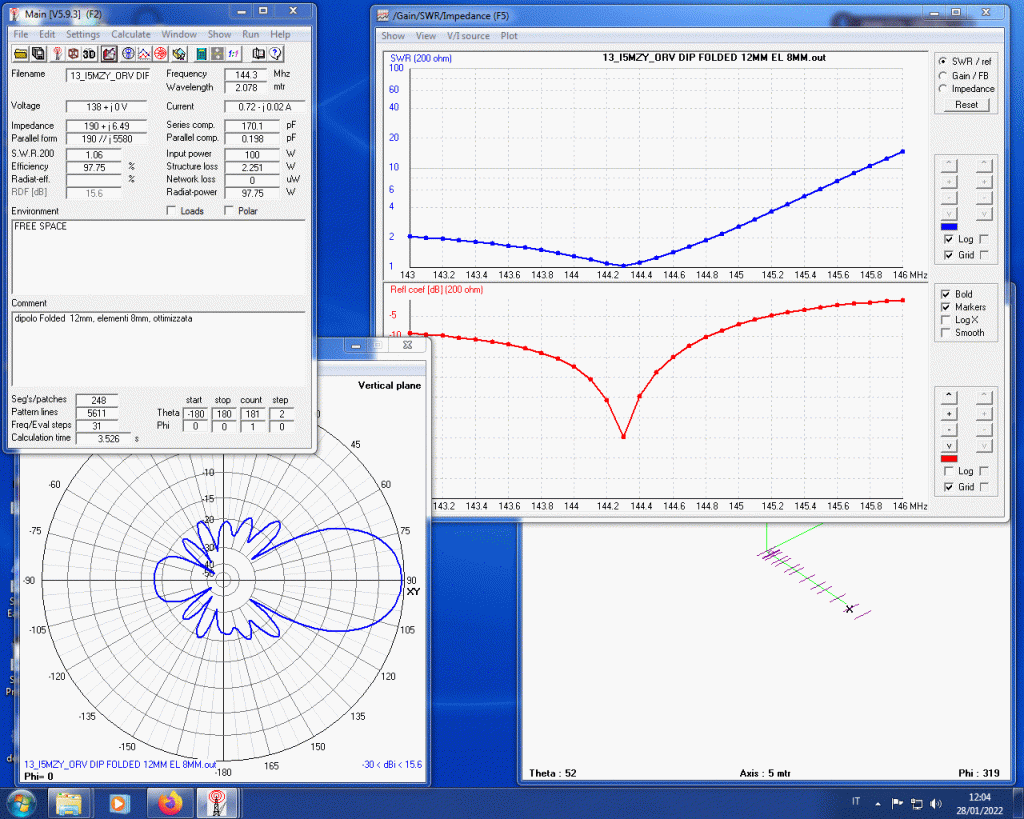

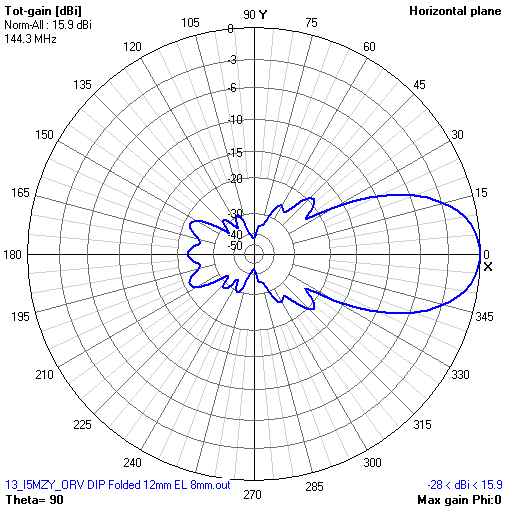

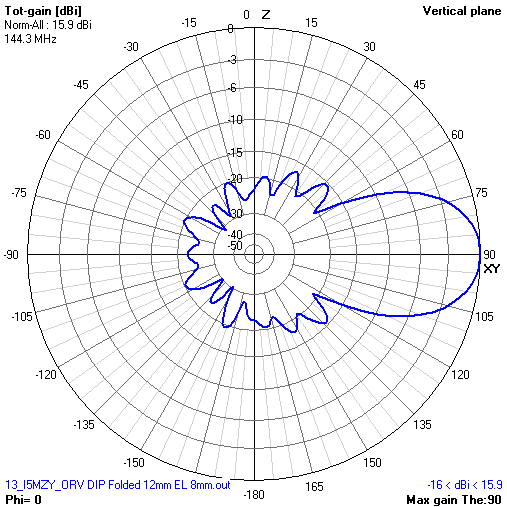

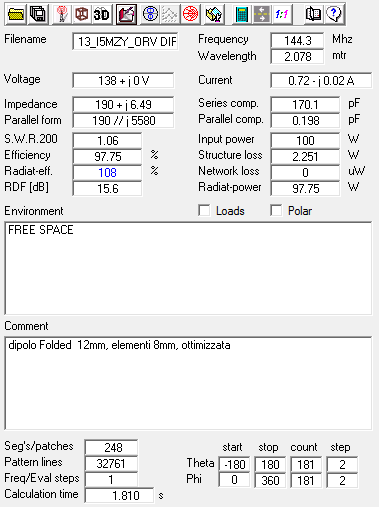

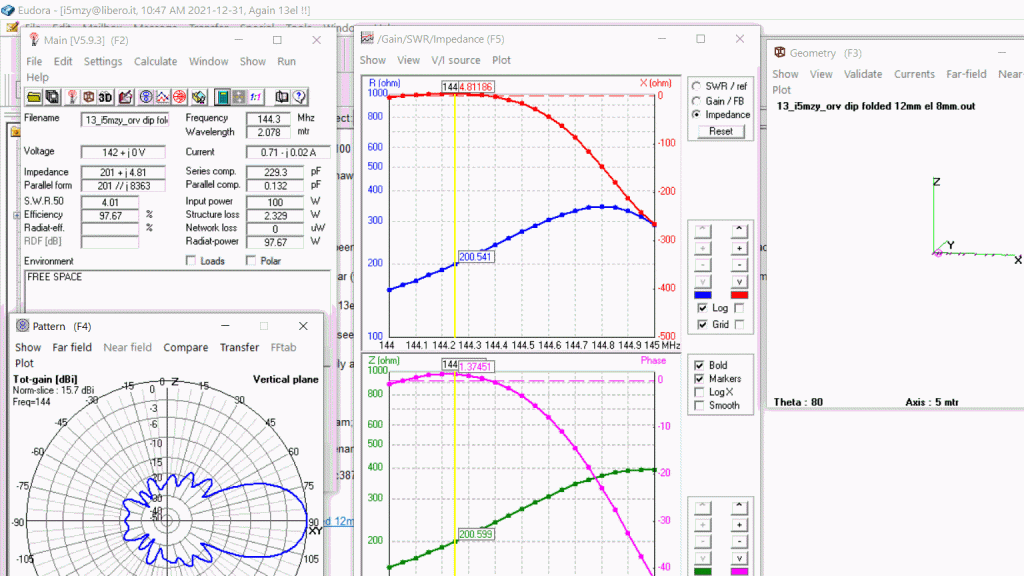

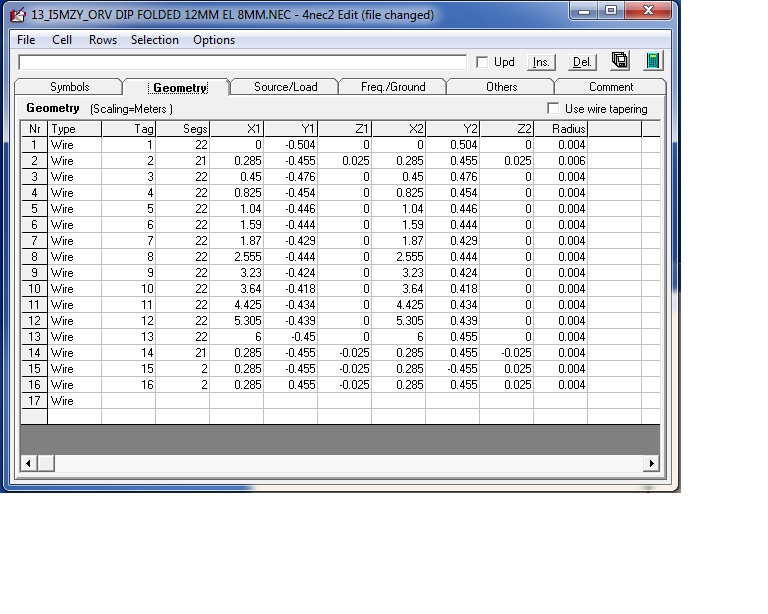

6 Meter Boom Version
Position | Lenght | Diameter | |
R | 0 | 1008 | 8 |
DE | 285 | 910 | 12* |
D1 | 450 | 952 | 8 |
D2 | 825 | 908 | 8 |
D3 | 1040 | 892 | 8 |
D4 | 1590 | 888 | 8 |
D5 | 1870 | 888 | 8 |
D6 | 2555 | 856 | 8 |
D7 | 3230 | 848 | 8 |
D8 | 3640 | 836 | 8 |
D9 | 4425 | 868 | 8 |
D10 | 5305 | 878 | 8 |
D11 | 6000 | 910 | 8 |
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/dipole-bent.jpg?resize=640%2C325)

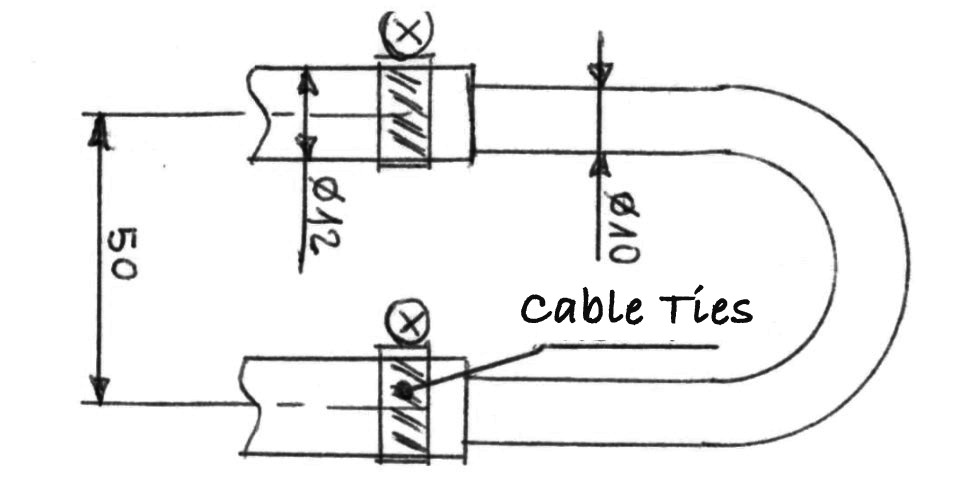

Distance between arms 50mm
shorten the arms 40mm on each side to insert a 10mm bent tube in order to allow fine tuning of the SWR.
- Element isolators are 60mm high from the boom.
- For other boom heights the length should be recalculated.

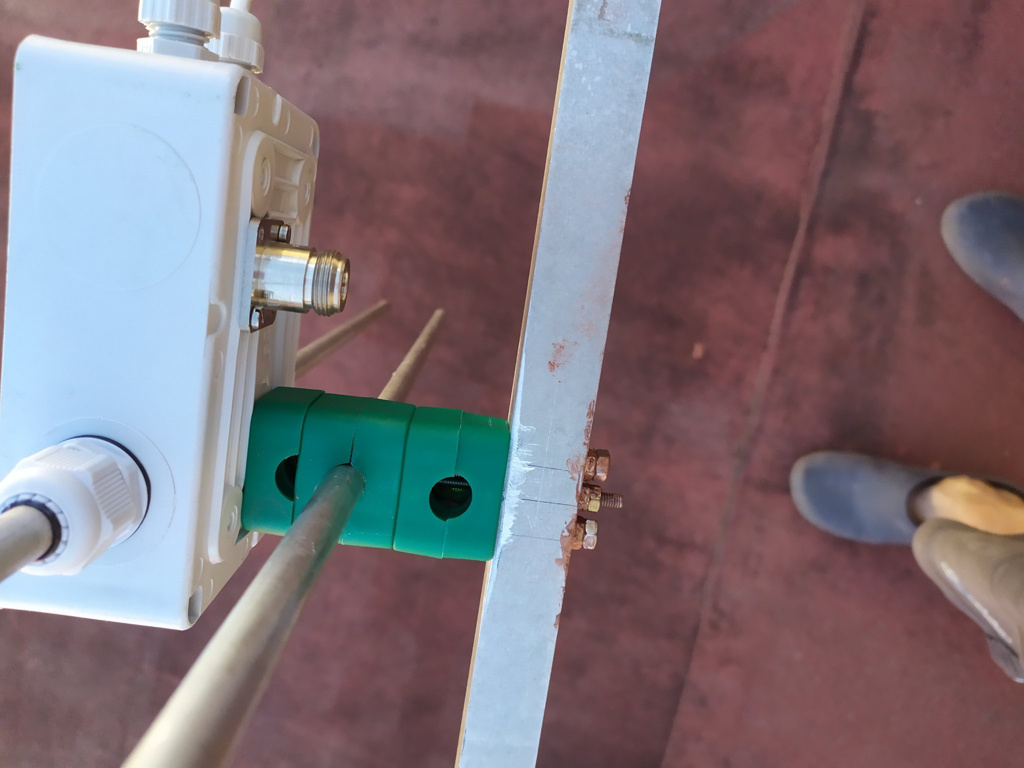

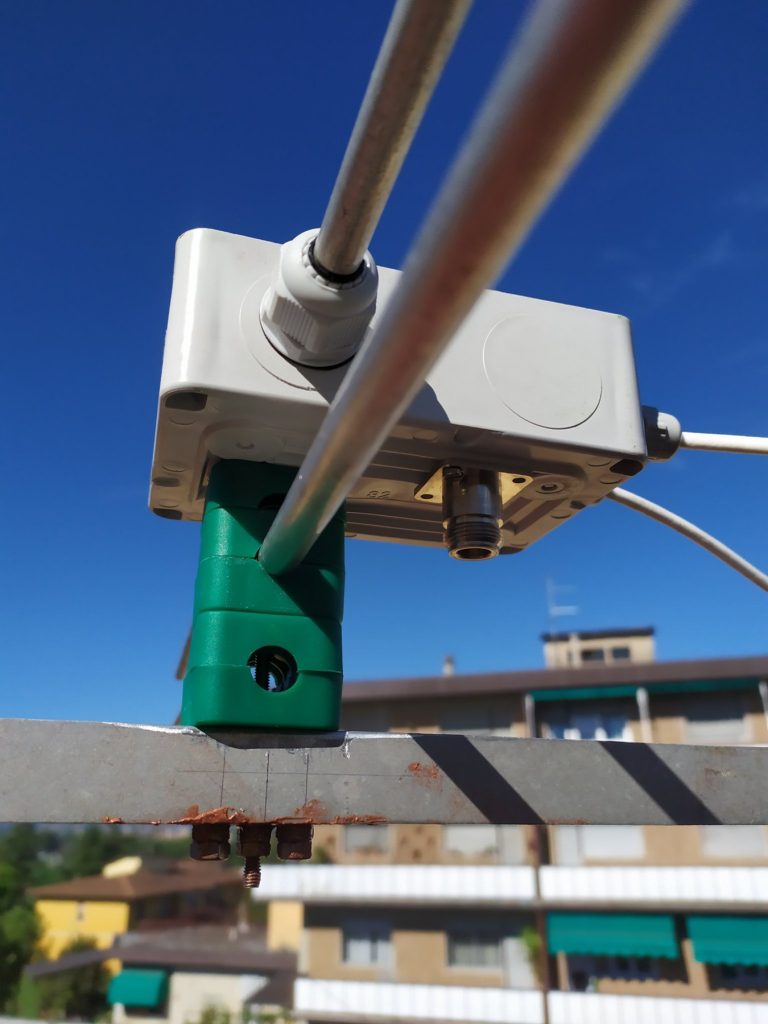

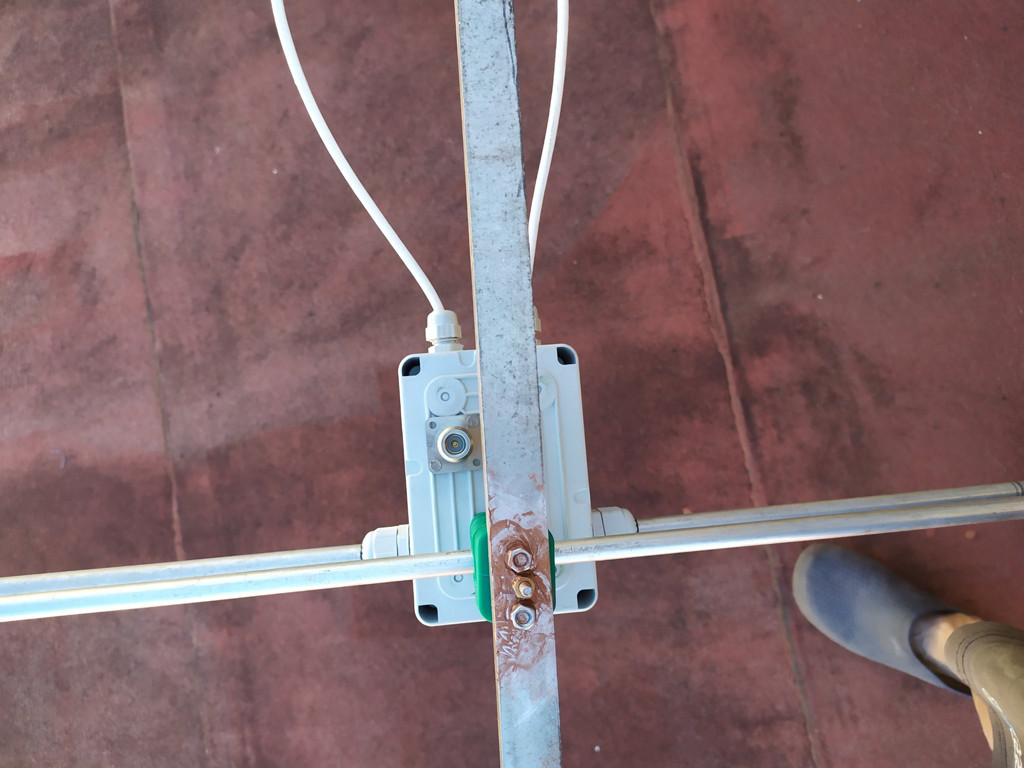

- the dipole should be fed with a balun, half wave lenght multplied cable’s velocity factor, as in the photo
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/I5MZY-Detail1.jpg?resize=640%2C480)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/I5MZY-Detail2.jpg?resize=640%2C480)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/I5MZY-Detail3.jpg?resize=640%2C853)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/I5MZY-Detail4.jpg?resize=640%2C480)

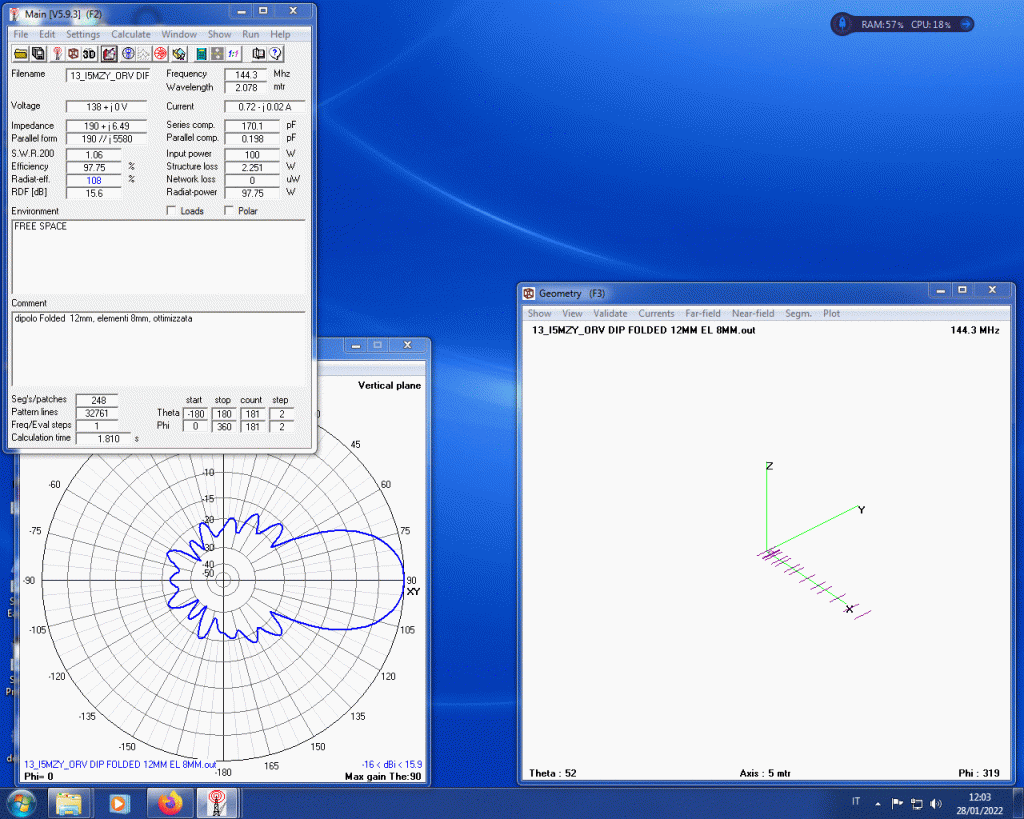

![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/Antenna-13-element-yagi-i5zmy-desktop2.jpg.gif?resize=640%2C512)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/Antenna-13-element-yagi-i5zmy-nec1.jpg.png?resize=379%2C507)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/Antenna-13-element-yagi-i5zmy_6m_desktop.jpg.gif?resize=640%2C512)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/13-element-yagi-i5zmy-6m-dia2.gif?resize=507%2C507)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/13-element-yagi-i5zmy-6m-dia1.jpg.gif?resize=507%2C507)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/4nec2.jpg?resize=640%2C512)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/I5MZY-13.gif?resize=640%2C360)

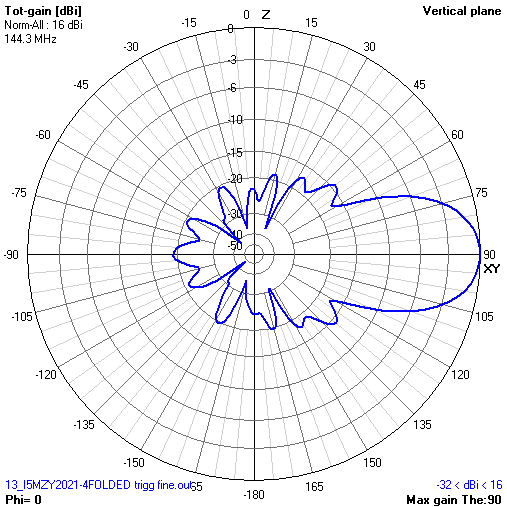

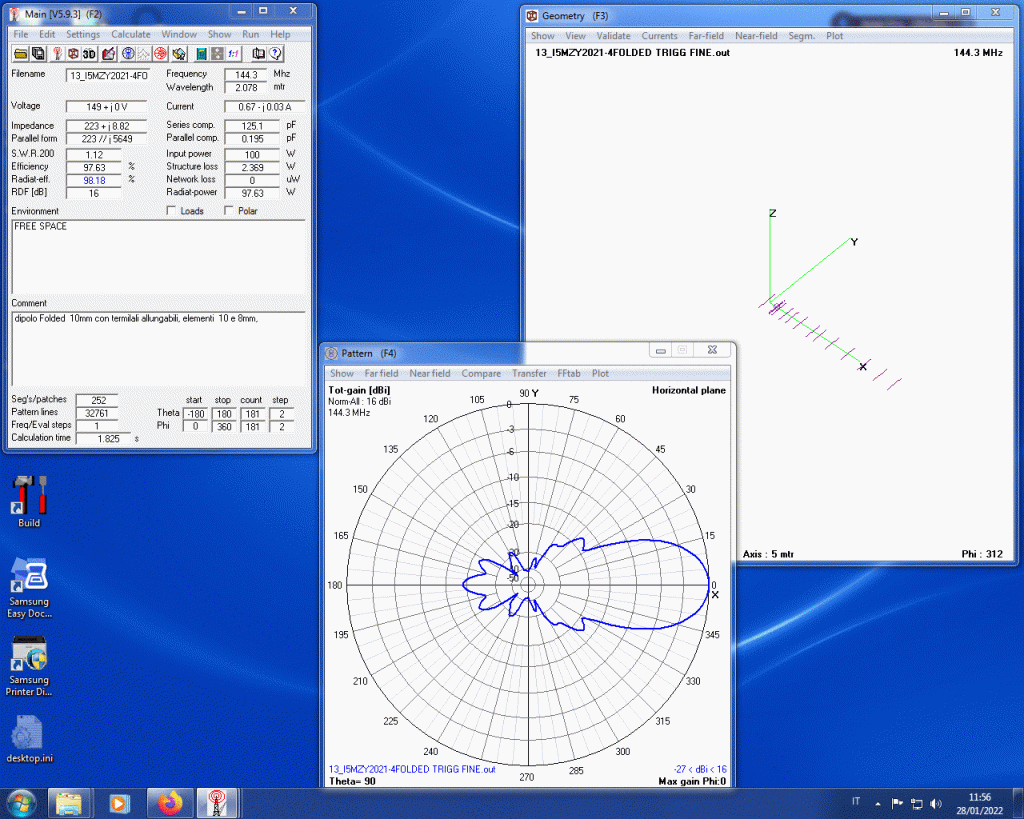

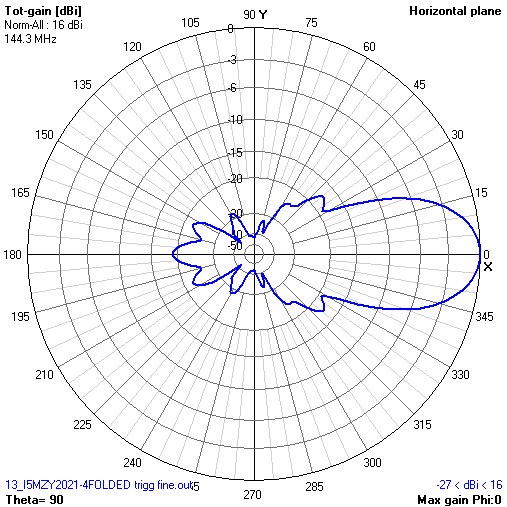

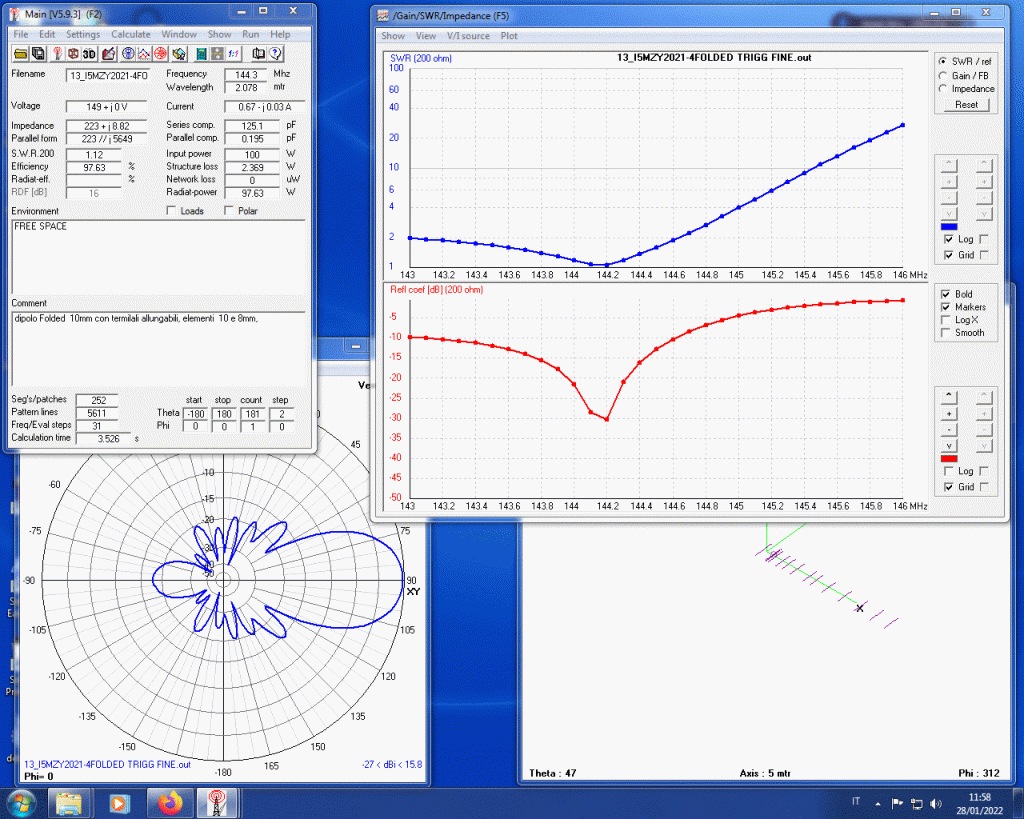

7 Meter Boom Version
Position | Lenght | Diameter | |
R | 0 | 1000 | 10 |
DE | 530 | 950 | 12* |
D1 | 675 | 956 | 10 |
D2 | 1080 | 920 | 10 |
D3 | 1385 | 872 | 8 |
D4 | 1850 | 916 | 8 |
D5 | 2550 | 856 | 8 |
D6 | 2915 | 856 | 8 |
D7 | 3595 | 876 | 8 |
D8 | 4468 | 884 | 8 |
D9 | 5378 | 876 | 8 |
D10 | 6253 | 878 | 8 |
D11 | 7030 | 886 | 8 |
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/13_i5mzy2021-4Folded3.gif?resize=640%2C360)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/13_I5MZY2021-4FOLDED-Verticale.png?resize=507%2C507)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/13_I5MZY2021-4FOLDED-TRIGG-FINE04.gif?resize=640%2C512)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/13_I5MZY2021-4FOLDED-TRIGG-FINE02.gif?resize=640%2C512)

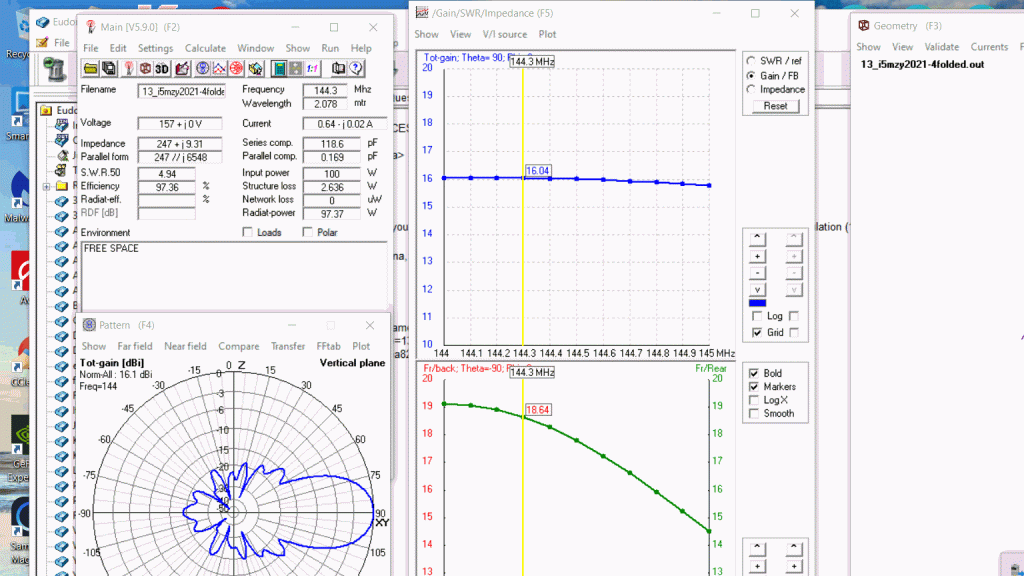

![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/13_i5mzy2021-4Folded_desktop.gif?resize=640%2C360)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/Immagine.gif?resize=640%2C512)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/13_I5MZY2021-4FOLDED-Orrizzontale.png?resize=507%2C507)

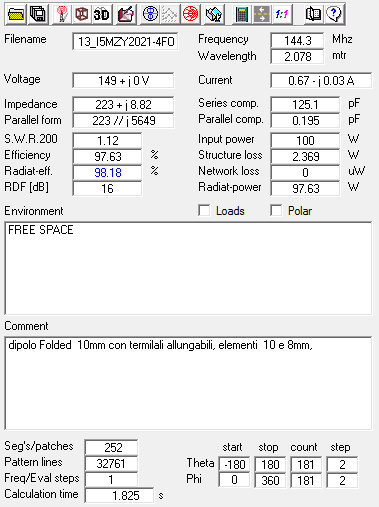

![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/13_I5MZY2021-4FOLDED-TRIGG-FINE01.png?resize=379%2C507)

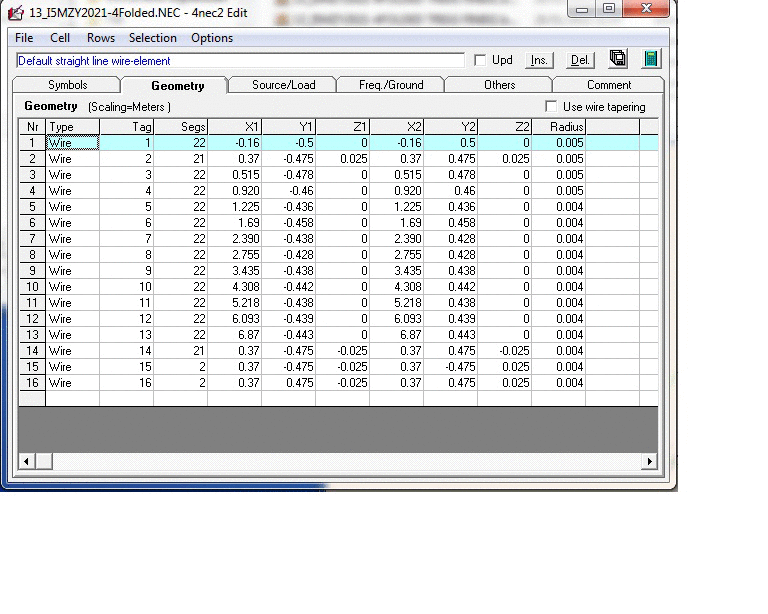

Donwload NEC FILES

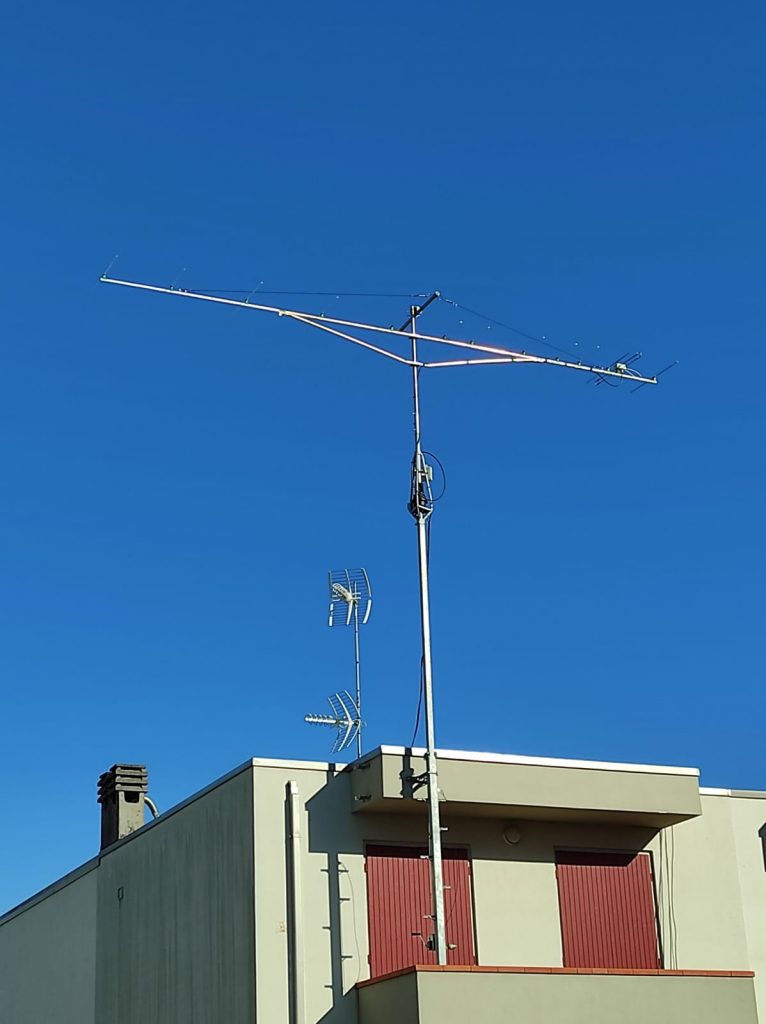

![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2022/02/85d92e12-1b95-4ac3-a2ff-28e5a67021bb.jpg?resize=640%2C856)
