Mic Wiring – Ham Radio

Share this article

Ham Radio popular schemas for Mic Wiring.

Alicno Wiring Diagram

Alinco Mic Wiring Diagram

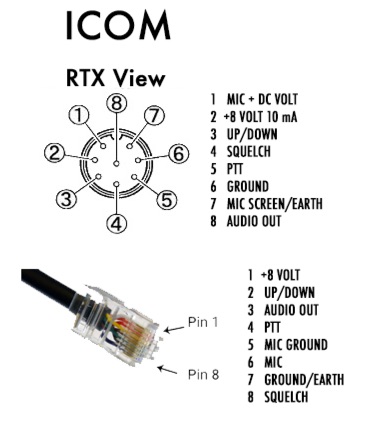

Icom Mic Wiring Diagram

Kenwood HandHeld Mic Wiring Diagram

Kenwood Mic Wiring Diagram

If you look for CB Radio mic wiring have a look at this page too

One thought on “Mic Wiring – Ham Radio”

  1. II need to know how to wire a electro voice 664 mic to a kenwood ts440at. Can you help me with this?
    Thank You
    KE5MBD
