The Yagi Designer program was first developed in 1992 on a DEC-Vax 3100 and written in Fortran, and the output was graphed in Mathematica 2.0. It has since been converted into a DLL with lightning fast speed compiled in the C language. It was written by a physicist that has always enjoyed dabbling in radio.
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2020/04/Yagi_Designer_2_0_-_Ham_Radio_Library.jpg?resize=640%2C466)

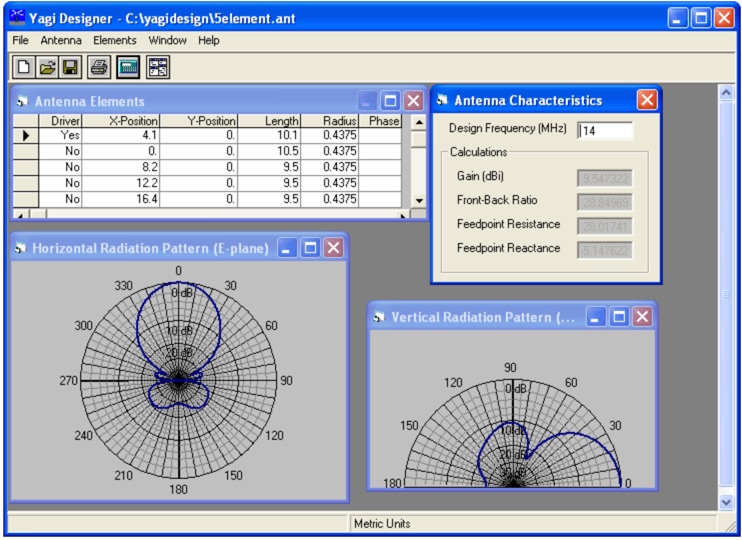

Can easily display E-Plane, horizontal radiation pattern, and H-Plane the vertical radiation patters, as well as to display antenna characteristics, in Gain, F/B ratio and feed point resistance and reactance.
