Article by WB5CXC
I wanted to build a 10M Yagi. I looked at some of the options and decided on the Moxon after I built my 2M Moxon. I designed the Moxon using the Moxon Rectangle Generator. Do a search on the Internet to find the Moxon Rectangle Generator. Enter the frequency and the size of wire and it will calculate the sizes for the Moxon Yagi
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2023/07/4274.jpg?resize=640%2C389)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2023/07/4281.jpg?resize=640%2C343)

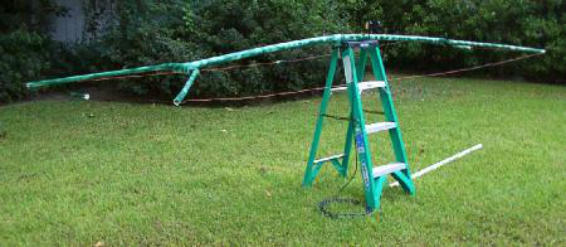

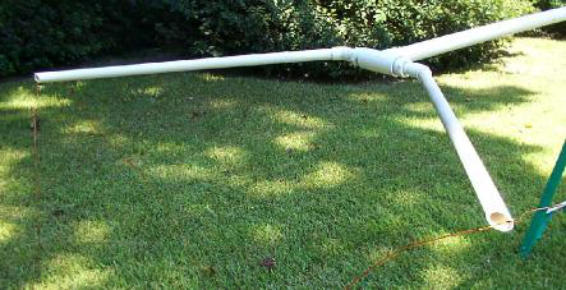

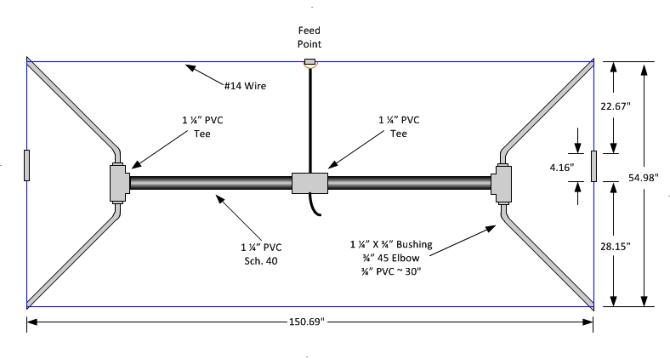

The main boom is made from 1 1/4” PVC sch. 40 pipe. The ends are made from a 1 1/4” Tee, 1 1/4” X 3/4” reducing bushing, 3/4” PVC pipe, and 3/4” 45 degree elbows. Make the end pieces first. I put the ends together and measured where the spacing gets to 55”, then I cut the pipe (for the end to be 55”). I then put he two ends out and measured th 150 3/4” and cut the pipe (be sure to leave enough room to slide into the Tee an still maintain the correct length).

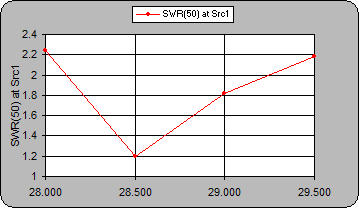

![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2023/07/4280.jpg?resize=359%2C208)

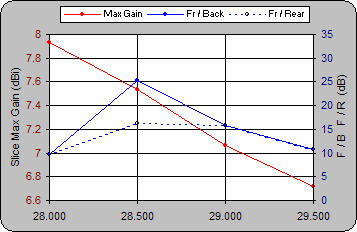

![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2023/07/4279.jpg?resize=357%2C232)

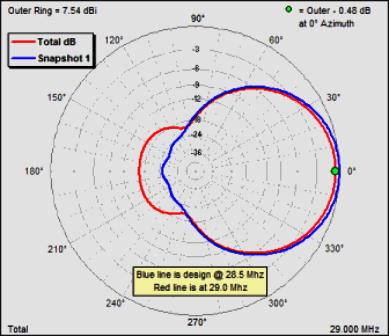

![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2023/07/4278.jpg?resize=389%2C336)

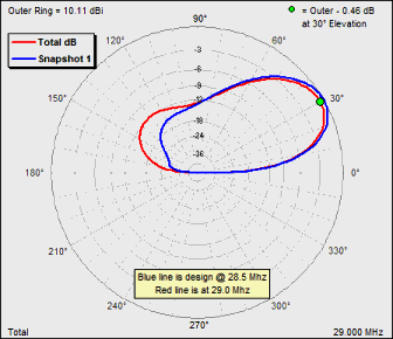

![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2023/07/4277.jpg?resize=393%2C339)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2023/07/4276.jpg?resize=566%2C247)
![](https://i0.wp.com/www.iw5edi.com/wp-content/uploads/2023/07/4275.jpg?resize=566%2C290)
