40m 3 element Yagi Posted in Antenna 2 Comments Dimensions of the 3 element Yagi antenna for 7 MHz 15m 7050KHz 20.59m 21.80m 19.18m 20m 7050KHz 20.68m 22.15m 19.38m 25m 7050KHz 20.82m 22.70m 19.49m 30m 7050KHz 20.85m 22.80m 19.60m Related Posts via Taxonomies50 MHz 4 and 7 elements Yagi DrawingsK9FV 40 meters band loopThe Grid Yagi2.4 GHz Cubical Quad Antenna4 Element Yagi BuildingDouble Bazooka AntennaBuddipole vs Wire Dipole on 20m160 Meter linear loaded Tee vertical doublet antennaDiscone Antenna for RTL SDRRotatable Dipoles
Do you have any specs on this 40m antenna yagi.
F/B, forward gain, weight

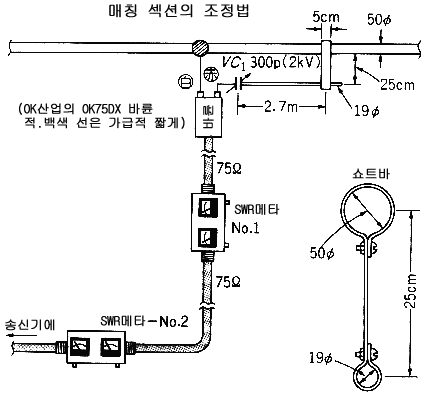

Hi Greetings, I have already started to construct a 3 element Yagi for 40 Metres but have not yet decided how i am going to match or feed the antenna, what is it you used, a Gamma match with a tuning Capacitor connected to it and what is the rectangular box the tuning Capacitor goes on to before the 75 ohm coax?
I would be happy for an explanation. Thanks in advance.
